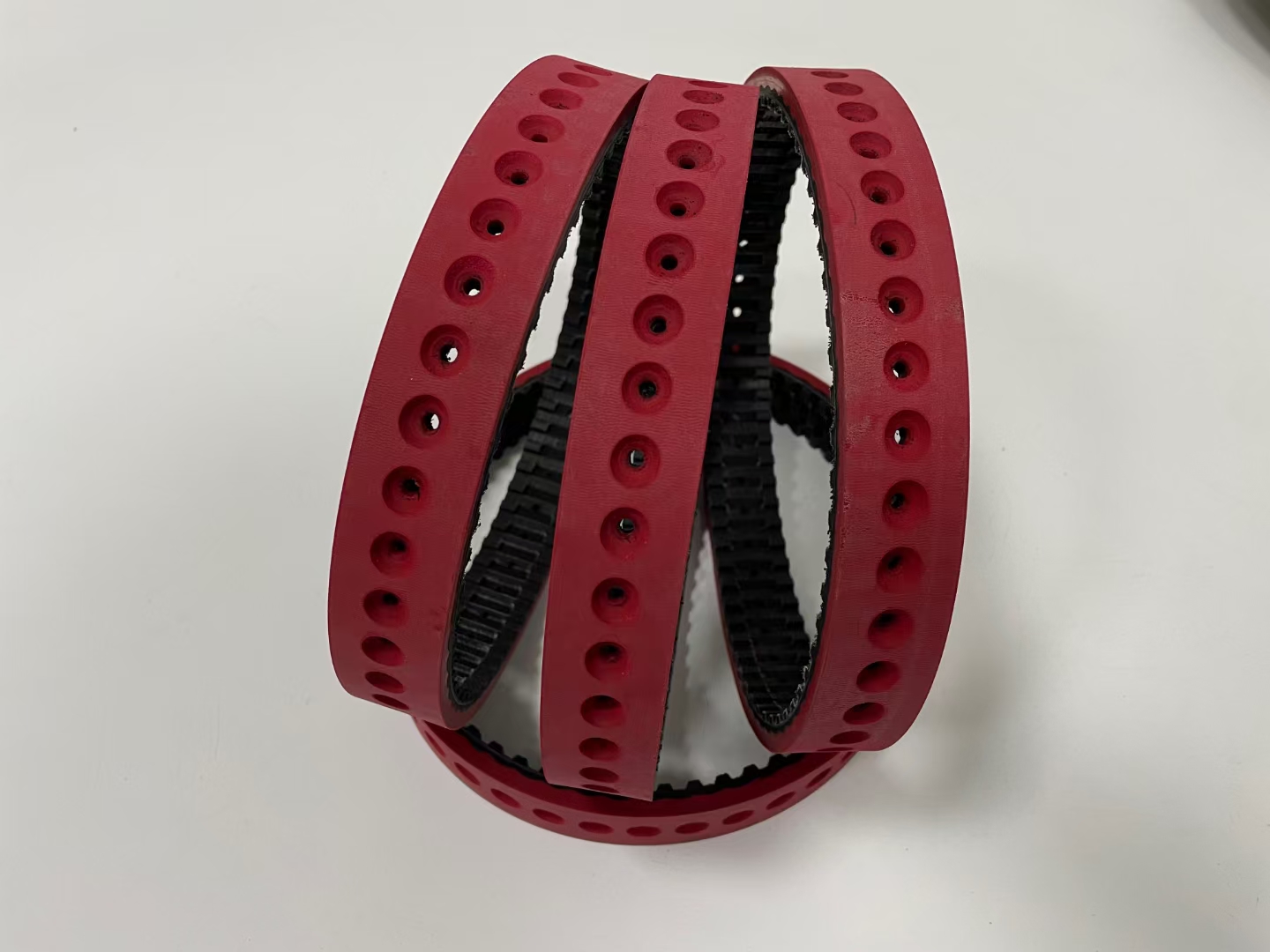

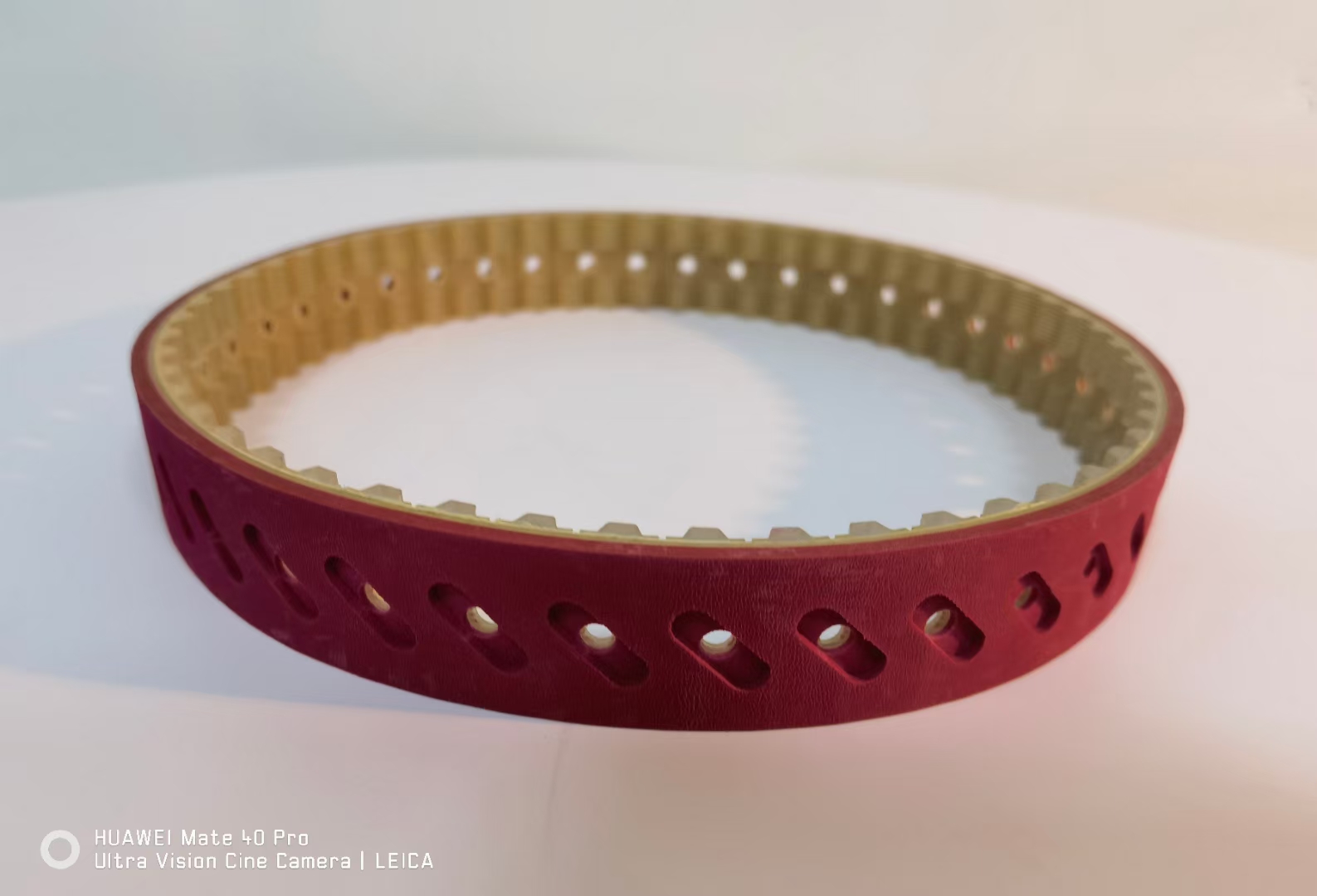

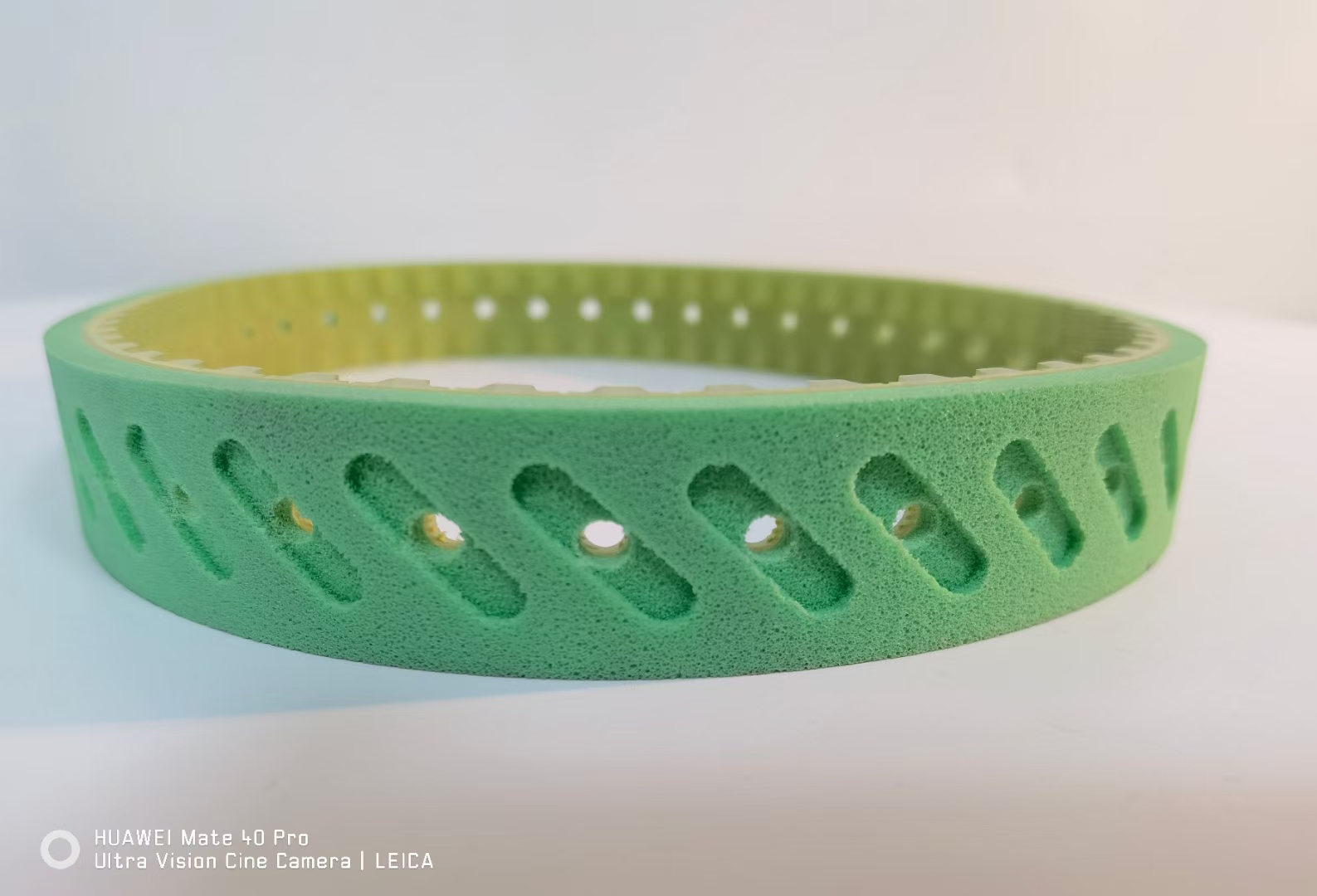

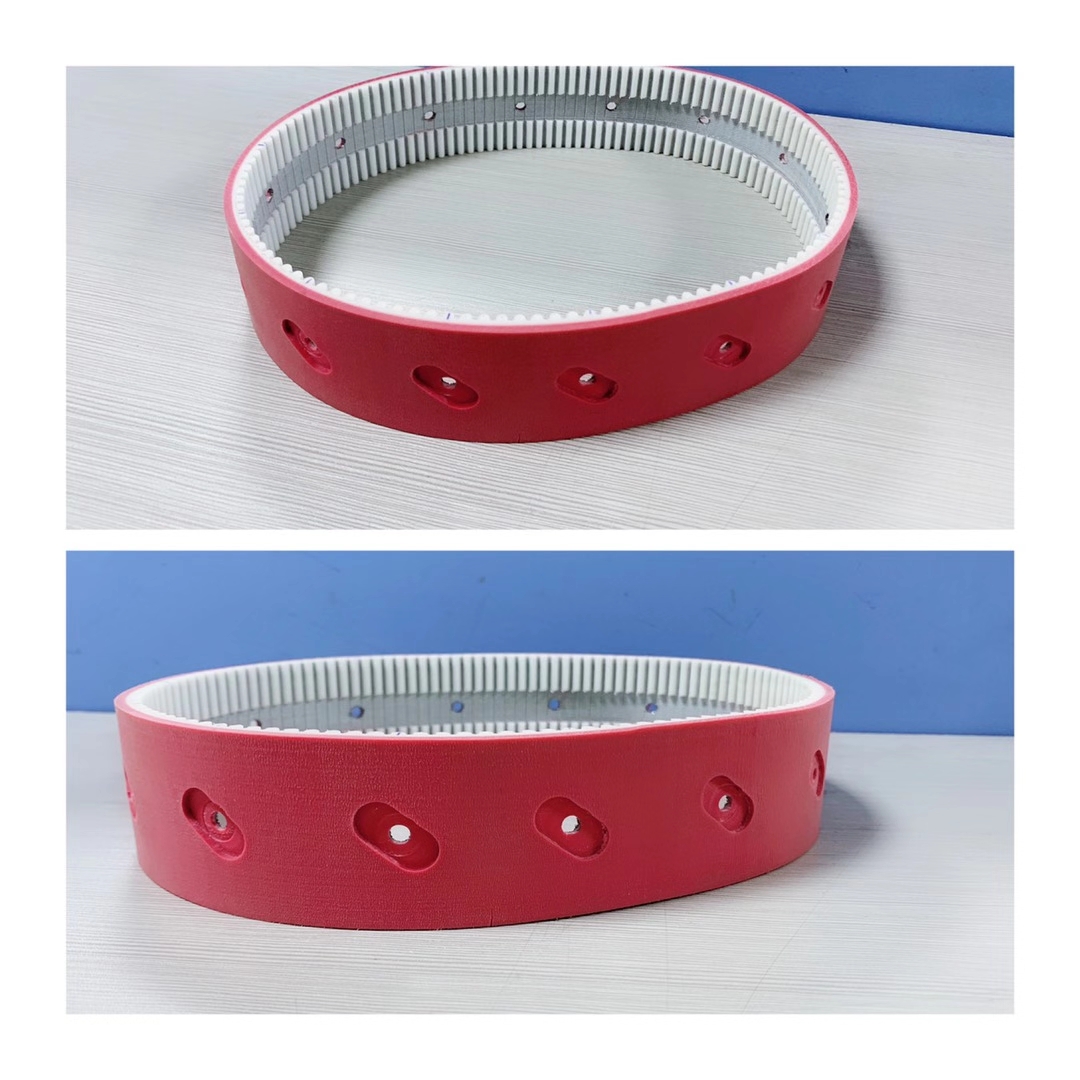

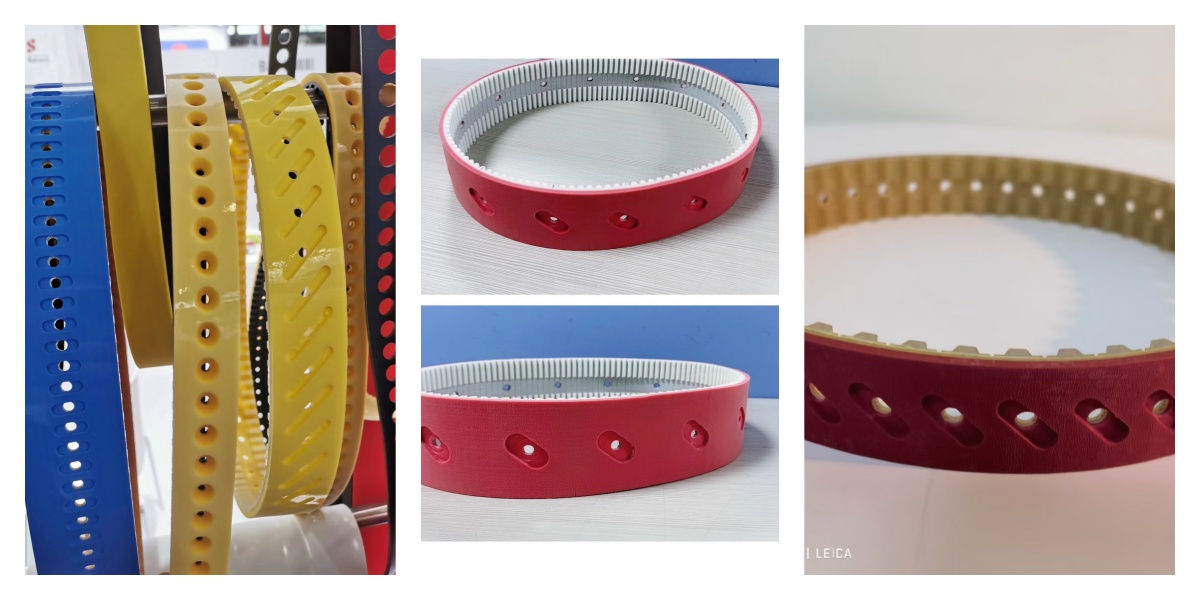

Perforated PU Timing Belt for Film Stretching Machine and Plastic Film Equipment
Product Description
Perforated PU Timing Belt is a specially customized synchronous belt designed for film stretching machines, plastic film production equipment, and precision transmission systems. The belt combines timing tooth structure with customized surface perforation processing to provide accurate power transmission, stable film handling, and reliable continuous operation.
Also known as Film Stretching Machine Timing Belt, Perforated Timing Belt, Vacuum Timing Belt, PU Timing Belt with Holes, and Customized Timing Belt for Film Machine, this product is widely used in BOPP film lines, plastic film processing equipment, packaging machinery, and industrial automation systems.
Different from standard timing belts, this belt features customized holes or perforation structures on the belt surface. The special processing can be used for vacuum adsorption, positioning, air release, lightweight design, or other customized equipment requirements.
XZBELT provides customized PU and rubber timing belt solutions according to machine design, belt specifications, tooth profile, hole pattern, surface coating, and operating conditions. The belt can be manufactured according to samples, drawings, or original equipment requirements.
The belt is suitable for film stretching machines, plastic film production lines, packaging machines, labeling equipment, and other applications requiring precise synchronization and stable material transport.
Product Features
Customized Perforated Belt Surface
The belt surface can be processed with customized holes, patterns, and spacing according to equipment requirements, supporting special conveying and positioning functions.
Precise Timing Transmission
The synchronous tooth structure provides accurate engagement with pulleys, reducing slipping and ensuring stable transmission during high-speed operation.
Suitable for Film Processing Equipment
The belt is designed for plastic film stretching, drawing, and transportation processes where precise movement control is required.
High Wear Resistance Surface
The customized PU or rubber coating provides good abrasion resistance and helps extend service life under continuous industrial operation.
Stable Running Performance
The reinforced belt structure provides dimensional stability and reliable performance for automated production lines.
Customized Material Selection
PU, rubber, reinforced core materials, and surface coatings can be customized according to temperature, speed, load, and working environment requirements.
OEM Replacement Solution
XZBELT supports replacement belt manufacturing based on original samples, machine models, drawings, and technical requirements.
Applications
Film Stretching Machine
Used in film stretching and drawing equipment requiring synchronized movement and stable film transportation.
BOPP Film Production Line
Suitable for BOPP and plastic film processing equipment requiring customized timing belts.
Plastic Film Processing Equipment
Applied in plastic film production lines where accurate transmission and controlled material movement are required.
Packaging Machine
Suitable for packaging equipment requiring synchronized conveying and customized belt surface functions.
Automation Equipment
Used in industrial automation systems requiring precise timing transmission and customized belt processing.
Advantages of Perforated PU Timing Belt
Accurate Synchronous Transmission
The timing tooth structure provides precise engagement with pulleys, helping maintain accurate movement control during high-speed film processing and automated production.
Customized Vacuum and Positioning Function
The perforated surface can be customized according to equipment requirements, supporting vacuum adsorption, air release, positioning, and special conveying functions.
Stable Film Transportation Performance
The customized surface structure improves contact stability with film materials, helping reduce material movement and improve processing consistency.
Excellent Wear Resistance
The PU or rubber surface provides good abrasion resistance, allowing the belt to operate reliably in continuous industrial production environments.
Low Maintenance Operation
The reinforced synchronous belt structure reduces stretching and deformation, helping improve service life and reduce replacement frequency.
Suitable for High Precision Equipment
The belt is suitable for equipment requiring accurate synchronization, stable running, and consistent material handling performance.
Customized Industrial Belt Solution
XZBELT develops customized perforated timing belts according to machine structure, tooth profile, hole design, surface coating, and working conditions.
Technical Parameters
| Item | Specification |
| Product Name | Perforated PU Timing Belt |
| Product Type | Customized Timing Belt / Synchronous Belt |
| Base Material | PU / Rubber Customized |
| Tooth Structure | Customized Timing Tooth Profile |
| Reinforcement Layer | Steel Wire / Fiberglass Cord / Customized Reinforcement |
| Surface Material | PU Coating / Rubber Coating / Customized Covering |
| Surface Processing | Perforation, Hole Punching, Surface Pattern Processing |
| Hole Type | Round Hole / Slot Hole / Customized Hole Pattern |
| Hole Diameter | Customized According to Application Requirements |
| Hole Spacing | Customized According to Machine Design |
| Hardness | Customized According to Working Conditions |
| Temperature Resistance | Customized According to PU/Rubber Material Grade and Application Environment |
| Wear Resistance | High Abrasion Resistance for Continuous Industrial Operation |
| Oil Resistance | Available According to Selected Material |
| Antistatic Option | Available for Special Industrial Applications |
| Belt Width | Customized |
| Belt Length | Customized |
| Tooth Pitch | Customized According to Equipment Requirements |
| Application | Film Stretching Machine, Plastic Film Equipment, Packaging Machine, Automation Equipment |
Customization Options
Customized Timing Tooth Profile
The belt tooth profile and pitch can be customized according to pulley specifications and equipment transmission requirements.
Customized Perforation Design
Hole diameter, hole spacing, hole shape, and perforation arrangement can be customized according to vacuum, positioning, or conveying requirements.
Customized Surface Coating
Different surface coatings including PU, rubber, and special friction layers can be selected according to material handling requirements.
Customized Belt Dimensions
Belt width, length, thickness, and overall structure can be customized according to original equipment requirements.
Customized Material Selection
PU, rubber, reinforcement materials, and special formulations can be selected according to speed, load, temperature, and working environment.
OEM Replacement Manufacturing
XZBELT supports replacement belt production based on existing samples, drawings, machine models, and application requirements.
Why Choose XZBELT Perforated PU Timing Belt?
Professional Customized Timing Belt Manufacturer
XZBELT specializes in customized industrial belt solutions including PU timing belts, rubber timing belts, perforated timing belts, and special processing belts for automation equipment.
Application-Oriented Belt Development
We focus on matching belt structure with actual machine requirements, including transmission accuracy, surface friction, vacuum function, material handling, and production conditions.
Advanced Customized Processing Capability
XZBELT supports special belt processing including perforation, surface coating, punching, grinding, and customized structures according to customer requirements.
Support for Film Machinery Applications
Our timing belts are developed for plastic film equipment, stretching machines, packaging machines, and other industrial systems requiring precise synchronous movement.
Flexible OEM Manufacturing Service
Customers can provide original belts, drawings, machine information, or application requirements. XZBELT provides matching solutions for replacement and OEM projects.
Reliable B2B Industrial Supply Capability
XZBELT serves equipment manufacturers, automation companies, production line suppliers, and industrial distributors with customized belt manufacturing solutions.
Frequently Asked Questions
Q1: What is a Perforated PU Timing Belt?
A Perforated PU Timing Belt is a synchronous belt with customized holes or perforation structures on the belt surface. It combines precise timing transmission with special surface processing functions.
Q2: What is this timing belt used for?
It is mainly used for film stretching machines, plastic film production equipment, BOPP film lines, packaging machines, and industrial automation equipment requiring accurate movement control.
Q3: Why does the belt have holes?
The perforation design can be customized for different purposes, including vacuum adsorption, air release, positioning, weight reduction, and special conveying requirements.
Q4: Is this belt a standard PU timing belt?
No. It is a customized timing belt with additional surface processing. Tooth profile, coating, reinforcement, and perforation design can be customized according to equipment requirements.
Q5: Can XZBELT produce both PU and rubber timing belts?
Yes. XZBELT can provide PU timing belts and rubber timing belts according to application requirements, including different surface materials and reinforcement structures.
Q6: Can the hole size and position be customized?
Yes. Hole diameter, hole shape, spacing, and arrangement can be customized according to machine design and functional requirements.
Q7: Can XZBELT make replacement belts based on samples?
Yes. Customers can provide existing belts, photos, drawings, or machine information. XZBELT can develop customized replacement timing belts.
Q8: What information is needed before quotation?
Customers can provide:
- Machine type and application
- Timing belt model or tooth profile
- Belt width and length
- Hole size and perforation requirements
- Surface coating requirements
- Working speed, temperature, and environment
- Existing sample or drawing
