Wide Polyurethane Timing Belt for Precision Synchronous Conveyor Applications
Product Description

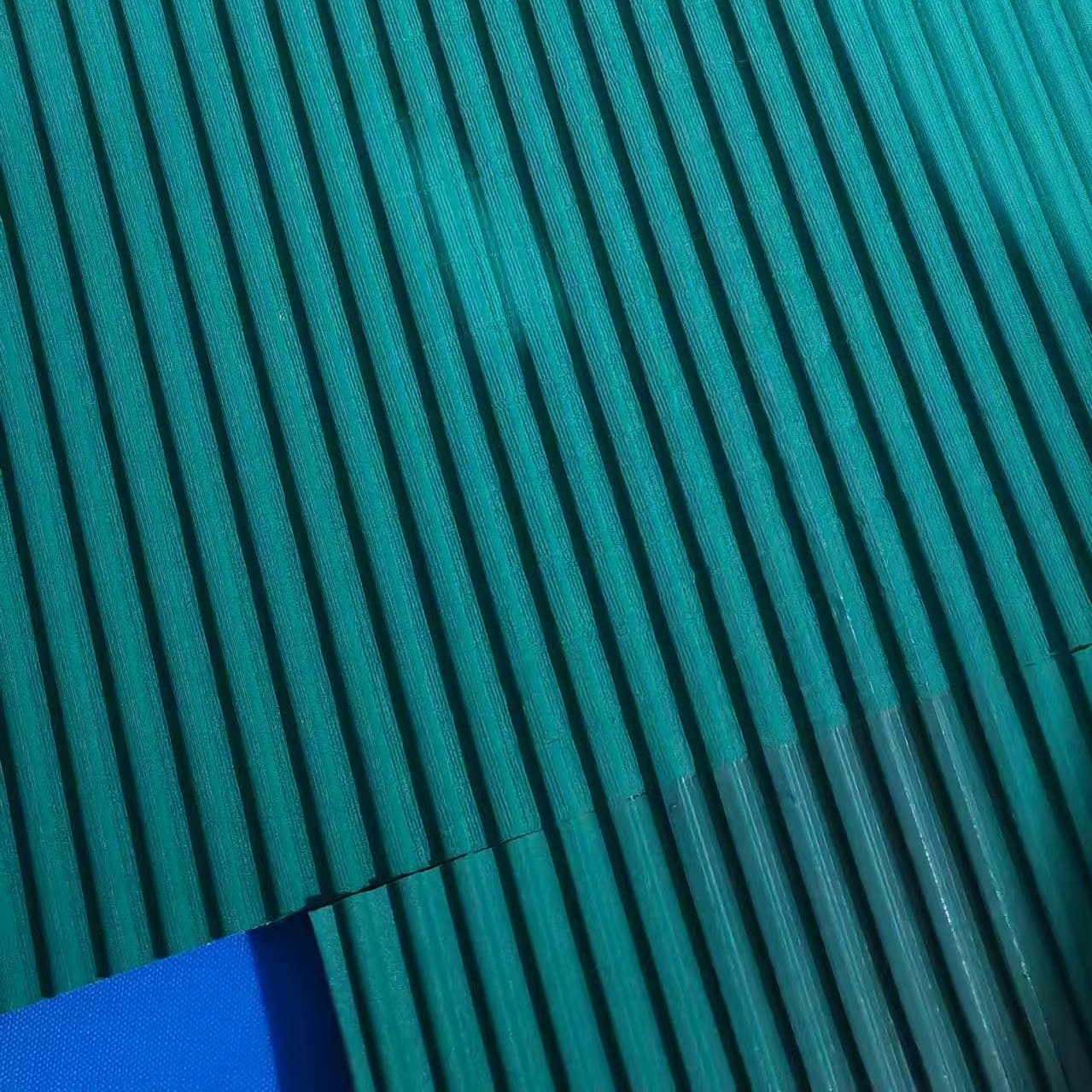

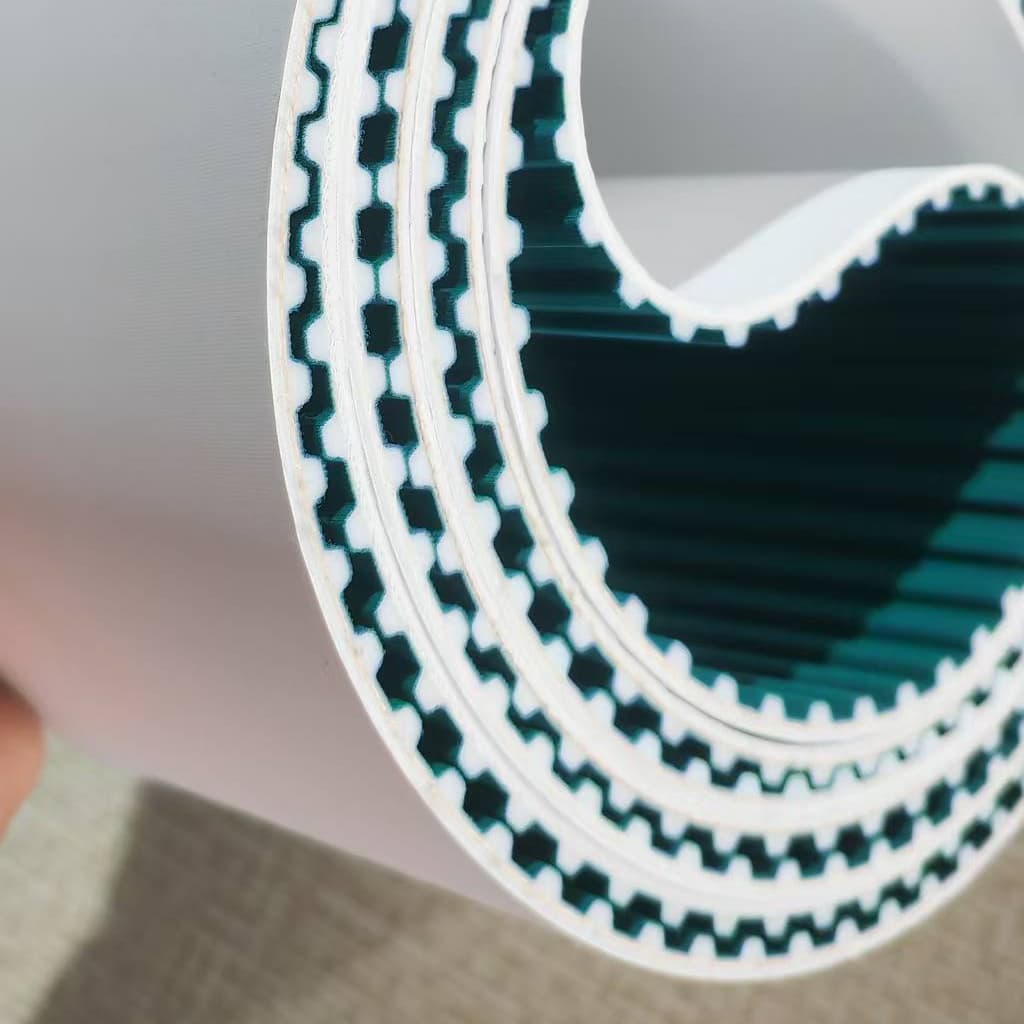

Wide Timing Belt is a special polyurethane synchronous belt designed for applications requiring large conveying surfaces, accurate positioning, and synchronized movement. Compared with standard timing belts, the extra wide structure provides a larger contact area while maintaining precise tooth engagement and stable transmission performance.
Also known as Wide Polyurethane Timing Belt, Extra Wide Timing Belt, Wide Synchronous Belt, and Wide Toothed Belt, this product combines the advantages of timing transmission and conveyor belt applications. It is widely used in automated conveyor systems, packaging equipment, logistics systems, glass processing machinery, and industrial automation equipment.
The belt body is manufactured from thermoplastic polyurethane with high-strength tensile cords, including aramid/Kevlar reinforcement options. The polyurethane material provides excellent wear resistance, dimensional stability, and long service life under continuous operation.
Unlike traditional flat conveyor belts, the synchronous tooth structure prevents slipping and ensures accurate positioning during conveying. The wide belt design allows larger products to be transported while maintaining precise synchronization with drive components.
XZBELT provides extra wide polyurethane timing belt solutions with widths up to 1200mm for industrial conveyor and synchronous transmission applications. Different tooth profiles, reinforcement structures, and surface treatments can be selected according to equipment requirements.
Product Features
Extra Wide Synchronous Conveyor Design
The wide belt structure provides a larger conveying surface compared with standard timing belts, making it suitable for transporting larger products and materials.
High Precision Tooth Engagement
The synchronous tooth profile ensures accurate movement without slipping, improving positioning accuracy in automated production processes.
High Wear Resistant PU Material
Thermoplastic polyurethane provides excellent abrasion resistance, dimensional stability, and reliable performance in industrial environments.
High Strength Reinforcement
Aramid/Kevlar tensile cords provide high tensile strength and low elongation, supporting stable operation under continuous load conditions.
Suitable for High Speed Conveying
The synchronous drive structure supports fast and accurate conveying applications with reduced maintenance requirements.
Multiple Surface Processing Options
The belt surface can be processed with different coatings, profiles, and attachments according to material handling requirements.
Applications
Automated Conveyor Systems
Used in synchronous conveying systems requiring precise product movement and stable positioning.
Packaging Machinery
Suitable for packaging lines requiring accurate indexing and synchronized product transportation.
Logistics Automation Equipment
Applied in automated sorting, handling, and transportation systems requiring wide conveying surfaces.
Glass and Panel Processing Equipment
Suitable for transporting large-size glass, panels, and industrial materials requiring stable support.
Woodworking and Board Processing Machinery
Used in machinery requiring accurate movement and wide contact areas for sheet materials.
Special Industrial Automation Equipment
Provides synchronous conveying solutions for various industrial automation applications requiring wide timing belts.
Advantages of Wide Polyurethane Timing Belt
Large Conveying Surface for Wide Products
The extra wide belt structure provides a larger supporting surface compared with standard timing belts, making it suitable for transporting large panels, sheets, and industrial products.
Precise Synchronous Movement
The toothed profile ensures accurate power transmission and prevents belt slipping, maintaining stable positioning during automated production processes.
Low Elongation and Stable Operation
High-strength tensile cords reduce elongation during operation, helping maintain consistent pitch accuracy and transmission performance.
Excellent Wear Resistance
The polyurethane belt body provides good abrasion resistance, oil resistance, and dimensional stability for industrial applications.
Suitable for Heavy Duty Automation
The reinforced structure supports continuous operation in industrial automation systems requiring reliable synchronous conveying.

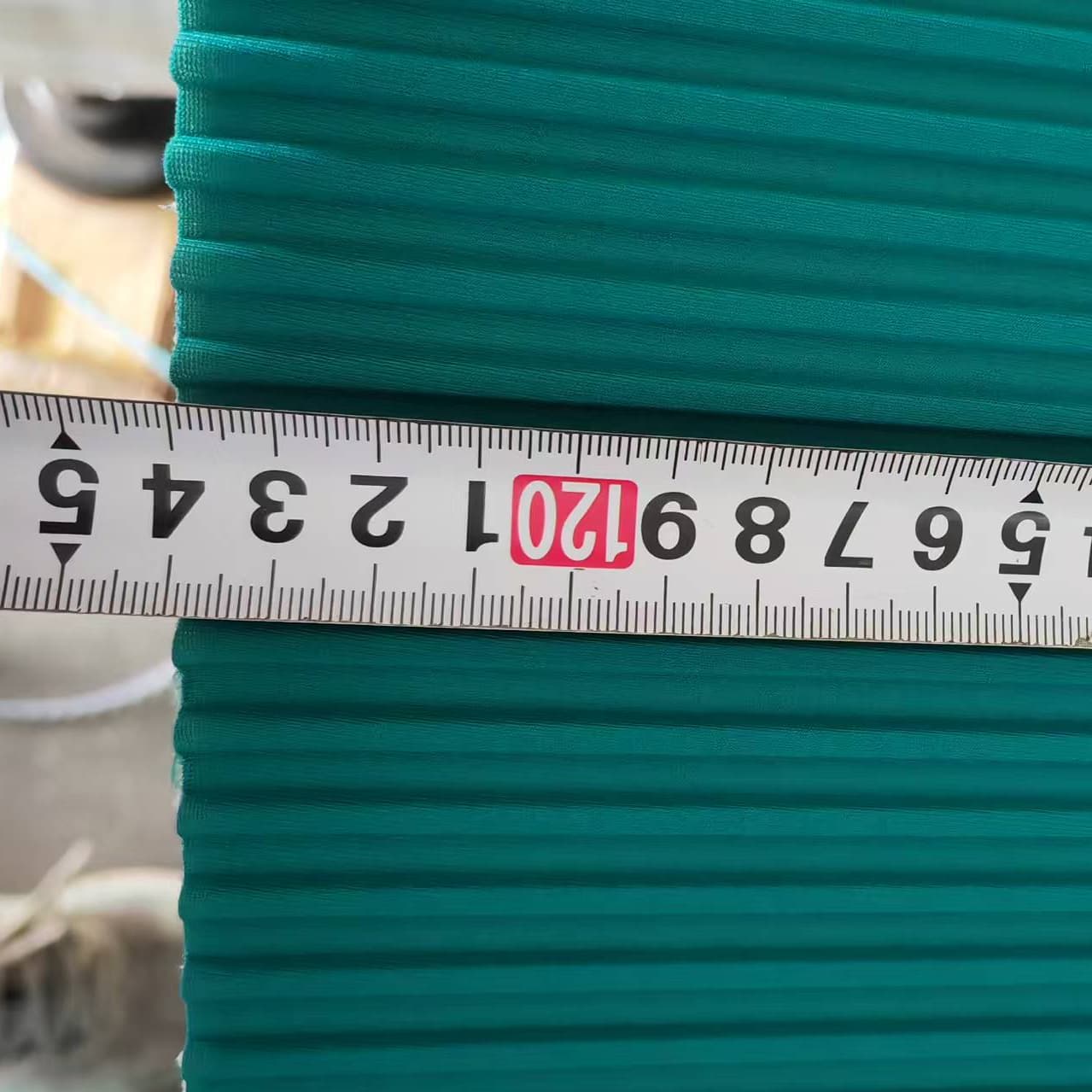

Wide Width Capability up to 1200mm
XZBELT wide timing belts can be supplied in extra wide configurations up to 1200mm, suitable for large-area conveying applications.
Technical Parameters
| Item | Specification |
| Product Name | Wide Polyurethane Timing Belt |
| Alternative Names | Wide Timing Belt / Extra Wide Timing Belt / Wide Synchronous Belt / Wide Toothed Belt |
| Belt Material | Thermoplastic Polyurethane (PU) |
| Tensile Cord | Steel Cord / Aramid (Kevlar) Cord |
| Belt Width | Up to 1200 mm |
| Tooth Profile | T5 / T10 / T20 / AT5 / AT10 / AT20 / HTD Series |
| Pitch | 5 mm / 10 mm / 20 mm Common Options |
| Tooth Material | Wear Resistant Polyurethane |
| Belt Hardness | Approximately 85-95 Shore A |
| Working Temperature | Approximately -25°C to +80°C |
| Tensile Performance | High Strength / Low Elongation Structure |
| Surface Options | PU Surface / Rubber Coating / Friction Surface / Special Covering |
| Processing Options | Cleats / Guides / Profiles / Coatings |
| Joint Type | Endless Welded Joint / Open Length Belt |
| Running Speed | Up to Approximately 10 m/s Depending on Application |
| Application | Synchronous Conveyor System / Industrial Automation Equipment |
Customization Options
Wide Belt Width Selection
Wide polyurethane timing belts can be supplied with widths up to 1200mm, suitable for large-area conveying and synchronized transportation applications.
Different Tooth Profiles
Common synchronous tooth profiles including T, AT, and HTD series can be selected according to pulley design and transmission requirements.
Reinforcement Material Selection
Steel cord and aramid cord reinforcement options are available to meet different requirements for strength, precision, and operating conditions.
Surface Processing Options
Different surface treatments, coatings, and profiles can be applied to improve grip performance and product handling capability.
Industrial Application Support
Suitable for equipment manufacturers and automation systems requiring wide synchronous transmission and conveying solutions.
Why Choose XZBELT Wide Timing Belt?
Professional Timing Belt Manufacturer
XZBELT specializes in industrial timing belts, conveyor belts, and special transmission solutions for automation equipment and industrial applications.
Advanced PU Belt Manufacturing Capability
Our production capability supports wide polyurethane timing belt manufacturing with reliable material structures and industrial performance.
Suitable for OEM Equipment Applications
The belts are suitable for machinery manufacturers, automation companies, and industrial equipment suppliers requiring precise synchronous movement.
Application-Based Belt Solutions
XZBELT focuses on practical application requirements including load conditions, running accuracy, conveying speed, and working environment.
Frequently Asked Questions
Q1: What is a Wide Timing Belt used for?
Wide Timing Belt is used for synchronous conveying and transmission applications requiring a larger belt surface area, accurate positioning, and stable movement. It is commonly used in automation equipment, packaging machinery, logistics systems, and industrial conveyor applications.
Q2: What is the maximum width of XZBELT Wide Timing Belt?
XZBELT Wide Polyurethane Timing Belt can be produced with widths up to 1200mm, making it suitable for large-area conveying applications requiring wide support surfaces.
Q3: What materials are used for polyurethane timing belts?
The belt body is manufactured from thermoplastic polyurethane (PU) with high-strength reinforcement cords, including steel cord and aramid/Kevlar cord options for different industrial applications.
Q4: What tooth profiles are available for wide timing belts?
Common tooth profiles include T5, T10, T20, AT5, AT10, AT20, and HTD series. The suitable profile depends on pulley design, load requirements, and transmission conditions.
Q5: What is the advantage of a wide synchronous belt compared with a flat conveyor belt?
The toothed structure provides synchronized movement without slipping, while the wide design provides a larger conveying surface and better product support compared with traditional flat belts.
Q6: Can Wide Timing Belts be used for conveyor applications?
Yes. Wide Polyurethane Timing Belts are widely used in synchronous conveyor systems where accurate positioning and stable product transportation are required.
Q7: What information is required when selecting a Wide Timing Belt?
Important information includes belt width, tooth profile, pitch, belt length, operating speed, load condition, pulley specification, and application environment.
